Foot-Switching Channel Select capabilities take you from vintage clean, to modern high gain, extending the overall bottom end tightness with a Depth control.

Rhythm Control for tight and in your face clean vintage tones.

Manual Pull-Boost on the Rhythm Control sets a Global Input Gain Structure simultaneously across both Channels.

The Lead Channel has 3 separate independently charactered Gain stages and 2 seperate Bright Controls for an unlimited amount of tonal Hi-Gain combinations.

The Lead Channel also incorporates 3 Pull-Boosts with 2 Boosts being Foot-Switchable

Added Saturation Control in the Lead section enhance an already agressive high gain experience while the pair of Bright Controls adds color control to 2 independant sections of the Lead Channel.

Foot-Switchable, fully bypass, tube buffered Effect Loop

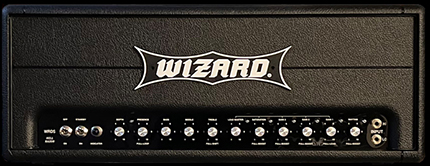

FRONT PANEL :

Two inputs (high and low sensitivity)

RHYTHM Control with manual Pull-Global Boost

LEAD CHANNEL :
Gain 1 with Pull-Channel Select, manual or Foot-Switchable
Gain 2 with Pull-Boost, manual or Foot-Switchable
Gain 3 with Pull-Boost
Saturation with Pull-Boost, manual or Foot-Switchable
Lead Master
Treble with Pull-Shift
Middle
Bass
Presence with Pull-Loop, manual or Foot-Switchable
Depth

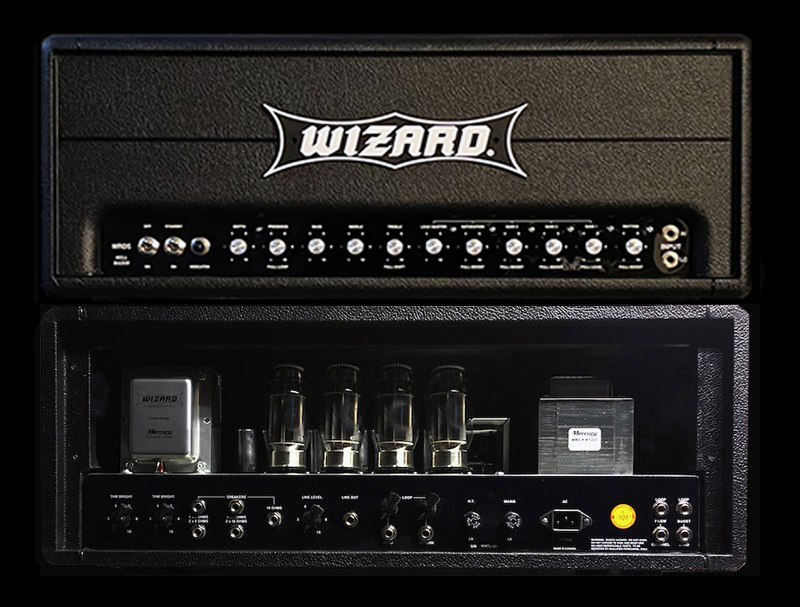

REAR PANEL :

Lead Bright 1
Lead Bright 2
4-8-16 ohm Impedance
Line Out jack with Line Level Control
Effect Loop Send and Return Jacks and Controls

Foot-Switching Matrix - 4 x 1/4" TS connections

POWER OPTIONS :

E34L powered 50 and 100 watt models

6L6 powered 50 and 100 watt models

CUSTOM POWER OPTIONS :

6V6 powered 40 watt modelAL

KT66 powered 60 and 120 watt models

KT88 powered 150 watt model

KT120 powered 200 watt models

Black Lexan Control Panels with White Graphics

Weight: 44 Pound / 50 watt or 56 Pound / 100 watt or 64 Pound 200 watt
